Replicate digital dyeing production
Assess Alchemie's Endeavour clean-tech production digital dyeing technology.
Hands-on understanding of digital dyeing
Increase your knowledge about Alchemie’s breakthrough proprietary digital liquid application technology.
Eliminate traditional lab-dip processes
A5 swatch replicating properties of Endeavour.
Hassle-free dye recipe-to-production
Discovery can generate & export dye recipes enabling fast colour -matching.

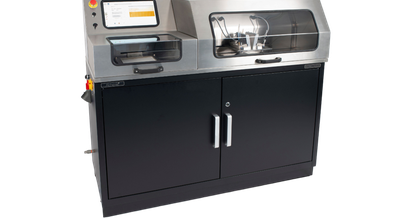

Alchemie’s Discovery - Lab System Replicating Digital Dyeing Technology
Accuracy and Precision

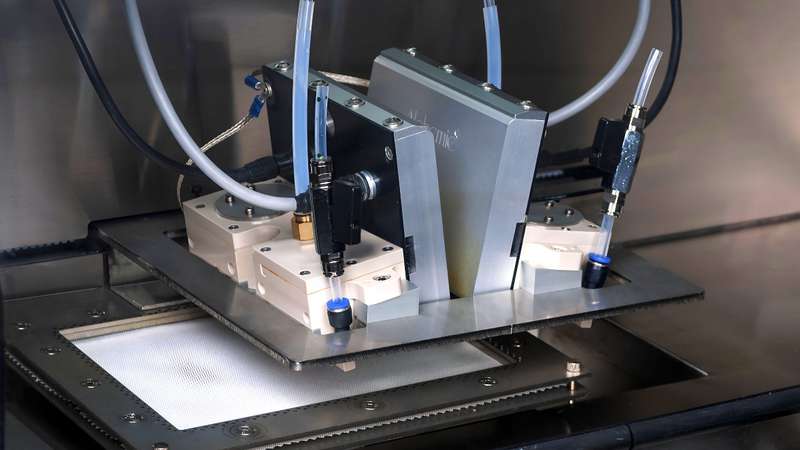

Discovery is equipped with key features such as Alchemie’s state-of-the-art digital non-contact jet dye applicator with Jetronica nozzles.
- Precise 10-micron droplet control
- Easy colour change and formulation development
- Pin frame sample holder
- Controllable penetration
Versatility
The versatility of our digital liquid application technology allows us to meet industry performance requirements using a wide range of commercially available colourants.
All fabrics are structurally and chemically different. Discovery can dye any fabric - with a wide range of colourants.
Replicate Data Acquisition and Recipe Export
The integrated Alchemie software allows seamless data transfer to Endeavour
- Simple process to colour match samples
- Build a colour recipe library quickly and safely
Product Specifications
| Discovery Technical Specification | |
|---|---|
| Negative pressure airflow control | Yes |
| Finished sample size | 15cm x 21cm (A5) |
| Recipe storage | Yes |
| Line speed | 15m/min |
| Dye supply | Manual injection |
| Jetting | Automated |
| Changeover | Manual |
| Machine dimensions | 1550mm (L) x 640mm (W) x 1430mm (H) |
| Touchscreen dimensions | 386mm (L) x 238mm (W) × 41mm (H) |

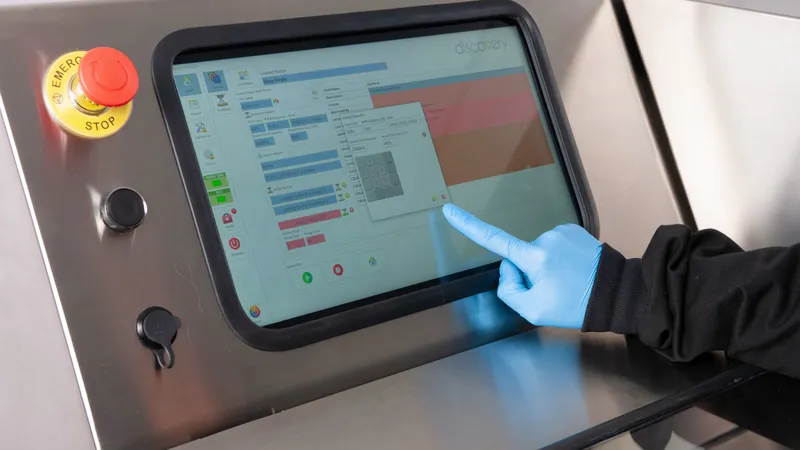

| Machine control | Software controlled |
| Power requirements | Single phase, 220-230V, 16A, 50/60 Hz |
| Compressed air supply | 2 bar, 10mm O.D. barb fitting |
Discovery resources
Want to learn more about our Discovery lab system, see some of our resources below.
